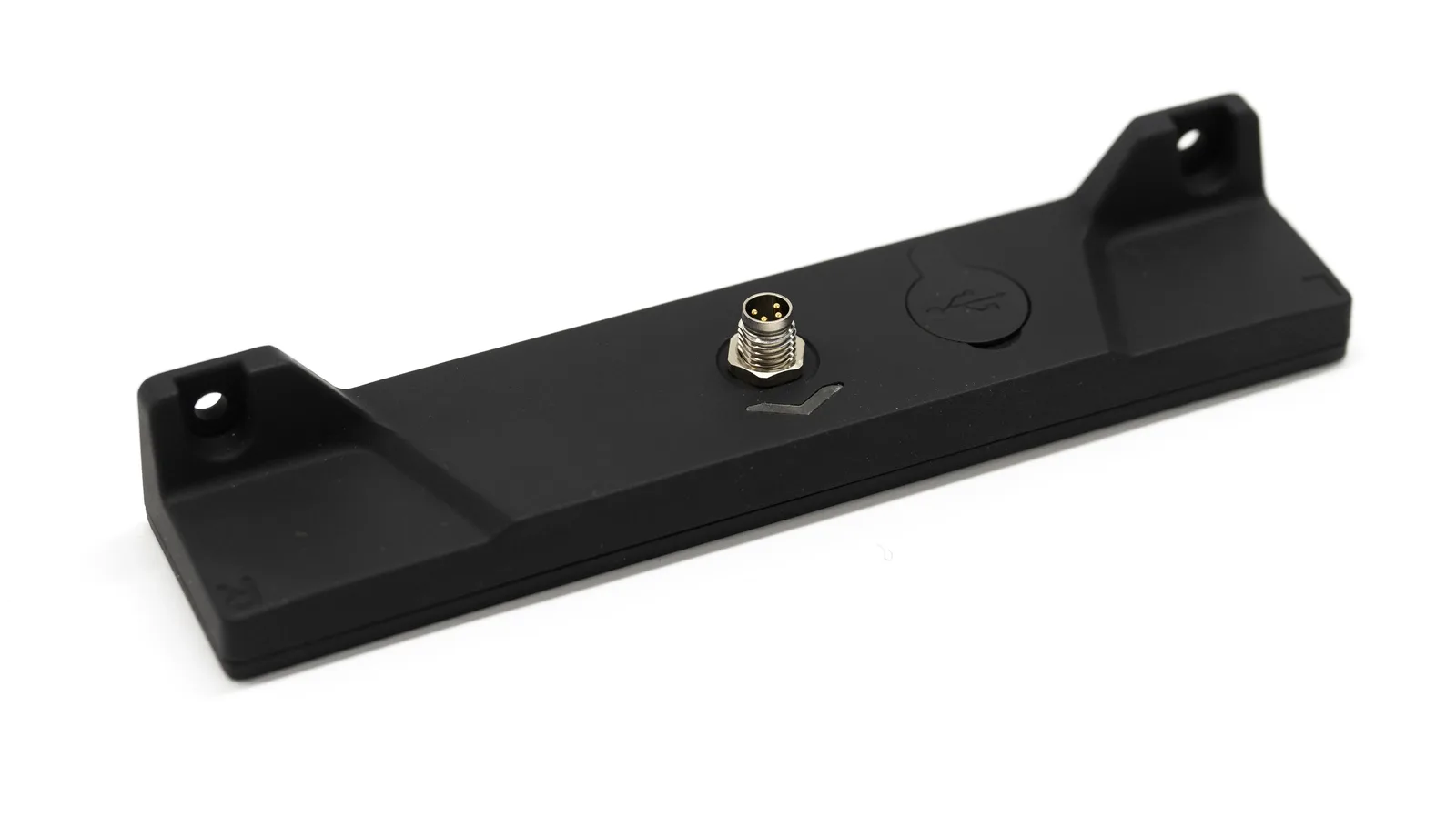

MTS160 Magnetic Guide Sensor

https://naviq.com/web/image/product.template/2/image_1920?unique=3d7ec19

The MTS160 is an advanced magnetic guide sensor designed for high-precision navigation of automated guided vehicles (AGVs) and mobile robots. Utilizing a dual magnetic row design, it accurately measures the angular incidence of the magnetic track, providing exceptional tracking accuracy even at high speeds and through complex routes.


The MTS160 operates seamlessly with various magnetic tape widths and shapes—whether flat or square—without requiring prior configuration. It features a 160mm sensing width, delivering 1mm lateral and 1-degree angular resolution, and functions efficiently at heights ranging from 10mm to 50mm.


Supporting both North and South magnetic polarities, the MTS160 can detect magnetic markers with inverted polarity placed alongside the main track to initiate additional commands. Its capability to manage two-way forks and merges makes it ideal for navigating complex paths. With multiple interface options, including CAN bus and RS232, it ensures easy integration with various control systems. Encased in an IP54-rated enclosure and equipped with a convenient USB configuration utility, the MTS160 is well-suited for demanding industrial environments.

495.00 495.0 USD 495.00 Tax Excluded

CHF 475.00 Tax Excluded

Not Available For Sale

This combination does not exist.

Terms and Conditions
Shipping: DAP (Delivered At Place) from distribution center in Shenzhen, China
• 5-7 business days delivery
• Import duties & taxes not included

Sensor

Name Value
Sensing Width 160mm
Sensing Height 10-50mm
Number of Internal Sensing Elements 32
Field Measuring Range 0 – 4 Militesla
Sensing Refresh Rate 200Hz
Number of Simultaneously Tracks 2
Track Position Sense Resolution 1mm
Track Angle Sense Resolution 1 Degree
Number of Simultaneous Markers 2
Marker Position Resolution 0.5mm X and Y

Communication

Name Value
USB Yes
RS232 Yes
RS485 Contact Naviq
RS232 Bit rates 9.6, 19.2, 38.4, 57.6 or 115.2 kbps
CANBus Yes - CANOpen
CAN Bit rates 125, 250, 512 or 1000kbits/
Bus Termination Resistor 120 ohm internal. Software enabled

Diagnostics

Name Value
LEDs Two RGB LEDs
Power-on Selftest Physical verification on internal Sense ICs
Selftest Full Hardware Diagnostics

Electrical

Name Value
Power Consumption 800mW
Supply Voltage 7 to 28V
Reverse Polarity Protection Yes
Inrush Current Limiting Yes
Surge Protection on Com Lines Yes

Electromechanical

Name Value
Power & Signal Connector M8, 4-pin, Male Connector
Dust and Water Protection IP54
Operating Temperature Range -20 oC to 65 oC
Certification Compliant EN IEC 60947-5-2-2020
Dimensions 165mm x 35mm x25mm
Housing Material SLA Resin or ABS
Weight 80g
File Name Version Last Update
Datasheet 1.1 Nov 28, 2024
3D Model 1.0 Sep 28, 2024
CANopen EDS 1.0 Jan 12, 2025
