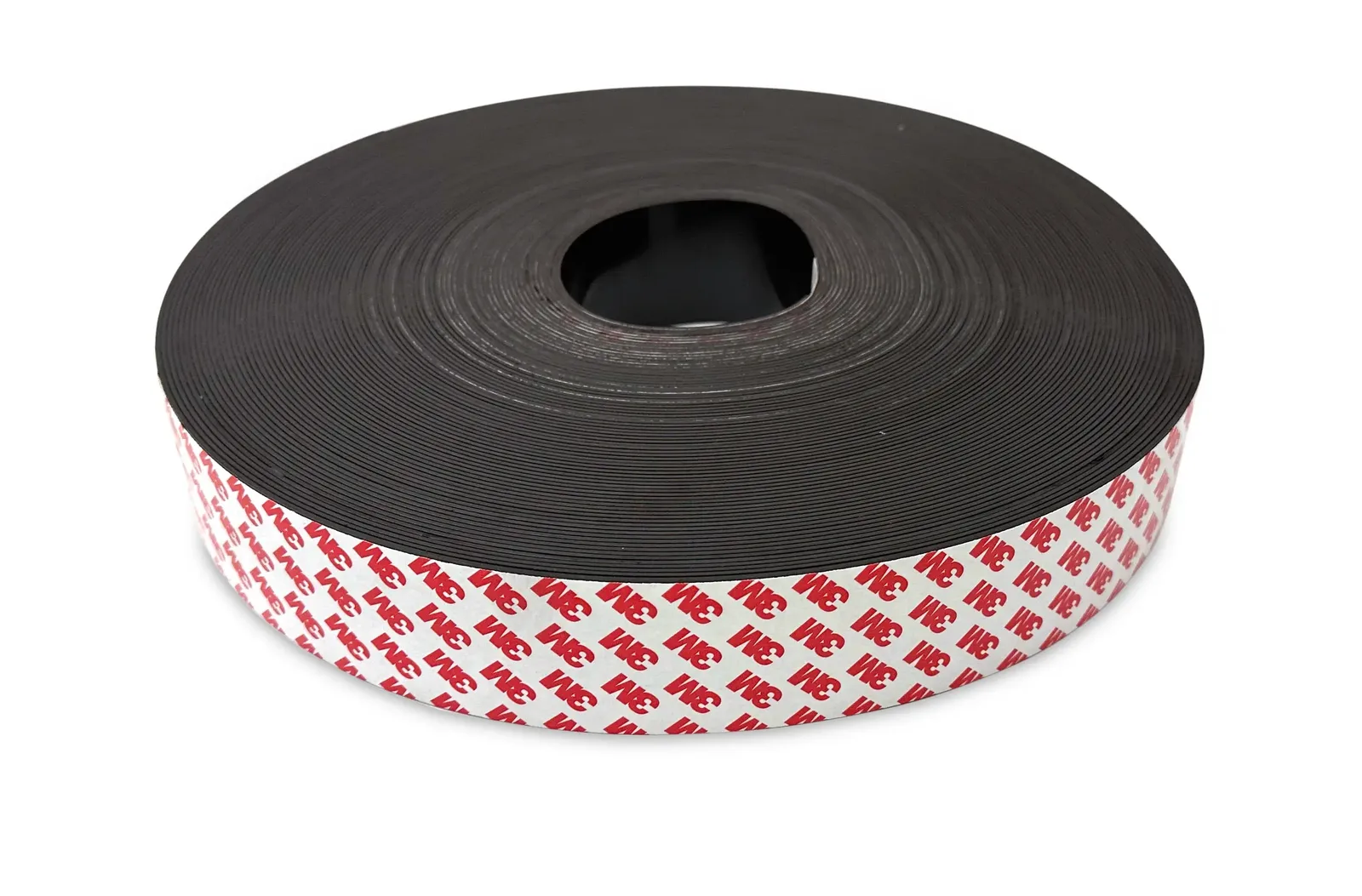

Magnetic Tape 50mm

https://naviq.com/web/image/product.template/3/image_1920?unique=def8e23

Premium Magnetic Guidance Tape for AGV Navigation

High-performance magnetic guidance tape engineered specifically for AGV (Automated Guided Vehicle) navigation systems. This 50mm wide magnetic tape creates a strong, consistent magnetic field for precise AGV tracking, while its industrial-grade 3M adhesive backing ensures permanent installation on warehouse and factory floors. Built to withstand heavy traffic and daily operations, this robust magnetic tape for AGV tracks delivers reliable pathway marking for your automation needs.

  • 50mm Width x 50m Length
  • North Pole Top Side
  • Industrial-Grade 3M Adhesive

375.00 375.0 USD 375.00 Tax Excluded

CHF 375.00 Tax Excluded

Not Available For Sale

This combination does not exist.

Terms and Conditions
Shipping: DAP (Delivered At Place) from distribution center in Shenzhen, China
• 5-7 business days delivery
• Import duties & taxes not included

Material Properties

Name Value
Material PLASTOFERRITE CM2
Adhesive Type 3M Double Coated Tissue Tape 55236
Density 3.5 - 3.8 g/cm³
Working Temperature Range -20°C - 80°C
Color Dark Brown

Magnetic Properties

Name Value
Residual Induction (Br) 0.24 - 0.25 T
Coercive Force (Hcb) 150 - 166 kA/m
Intrinsic Coercivity (Hcj) ≥ 150 kA/m
Maximum Energy Product (BH)max 10 - 12 kJ/m³

Physical Dimensions

Name Value
Width 50mm
Roll Length 50M (150ft)
Thickness 1.3mm

Adhesive Properties

Name Value
Product Reference 3M 55236
Front Face Acrylate, 0.06 mm
Back Side Acrylate, 0.06 mm
Protective Paper White with 3M logo
File Name Version Last Update
Specification Sheet 1.0 Jan 15, 2024
