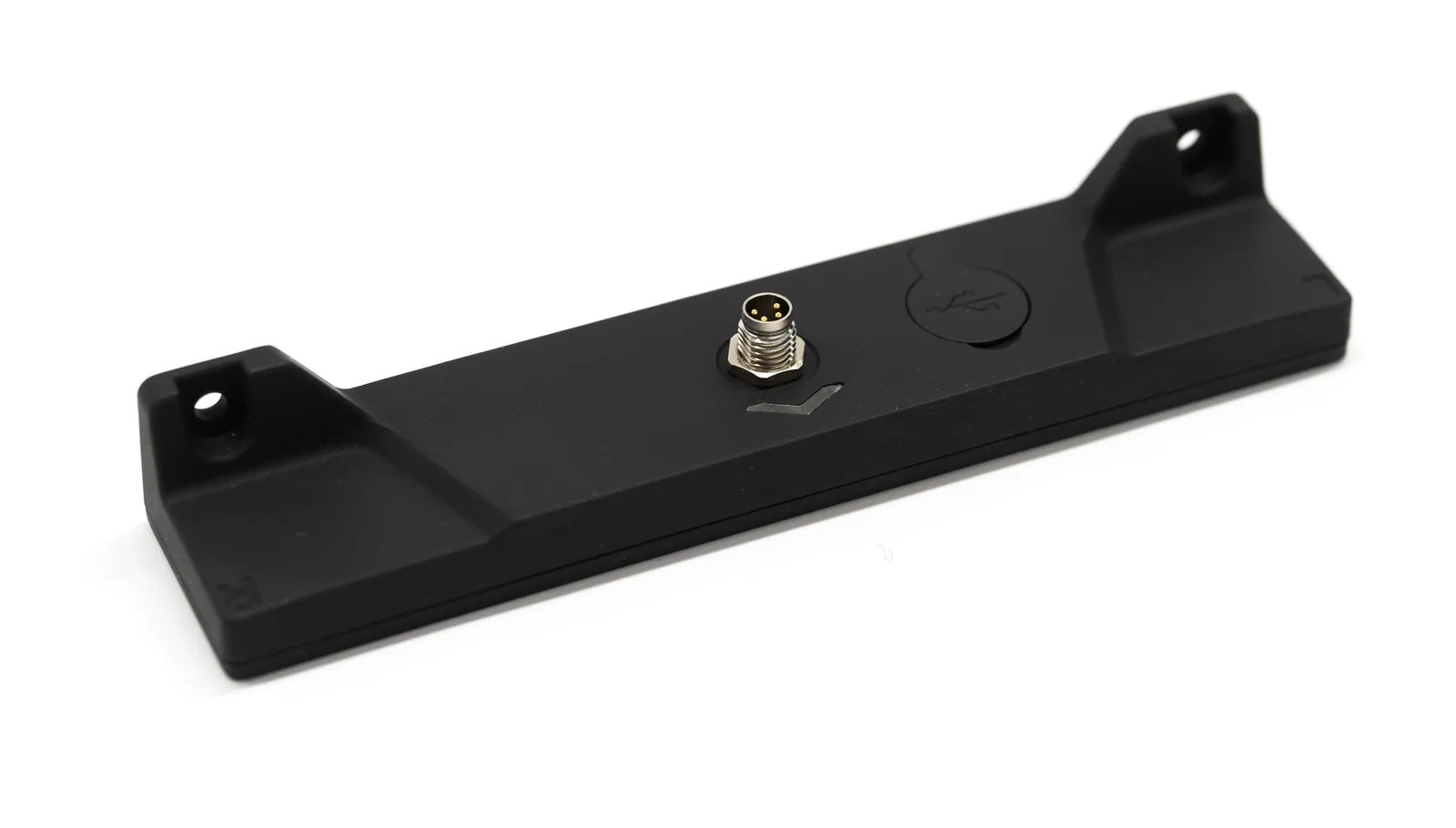

MTS160S Position-Only Magnetic Guide Sensor

The MTS160S is a simplified magnetic guide sensor that reports lateral position only, without measuring or outputting the angle of the magnetic track. This makes it a lower-cost alternative to the MTS160, ideally suited for AGVs and mobile robots that operate at lower speeds or can tolerate more deviation when following curves.

With its 160mm sensing width, the MTS160S delivers 1mm lateral resolution and works seamlessly with a wide range of magnetic tape widths and shapes—flat or square—without any prior setup. It functions efficiently at installation heights from 10mm to 50mm and supports both North and South magnetic polarities. Like the MTS160, it can detect magnetic markers with inverted polarity to trigger additional commands, and it easily manages forks and merges in two-way paths.

The MTS160S features the same rugged IP54-rated enclosure, multiple interface options (including CAN bus and RS232), and intuitive USB configuration utility for straightforward integration. By focusing on position-only tracking, it provides a simpler, more economical solution for AGVs that do not require angular correction for precise path following.


$395.00

Tax Excluded.

Large OEM discounts - Contact us.

Availability & shipping

USA

US warehouse

In stock

Hong Kong

Global warehouse

In stock

Ships worldwide — rates and delivery times calculated at checkout.

Specifications

Sensor

Name Value
Sensing Width 160mm
Sensing Height 10-50mm
Number of Internal Sensing Elements 32
Field Measuring Range 0 – 4 Militesla
Sensing Refresh Rate 200Hz
Number of Simultaneously Tracks 2
Track Position Sense Resolution 1mm
Number of Simultaneous Markers 2
Marker Position Resolution 0.5mm (lateral position only)

Communication

Name Value
USB Yes
RS232 Yes
RS485 Contact Naviq
RS232 Bit rates 9.6, 19.2, 38.4, 57.6 or 115.2 kbps
CANBus Yes - CANOpen
CAN Bit rates 125, 250, 512 or 1000kbits/
Bus Termination Resistor 120 ohm internal. Software enabled

Diagnostics

Name Value
LEDs Two RGB LEDs
Power-on Selftest Physical verification on internal Sense ICs
Selftest Full Hardware Diagnostics

Electrical

Name Value
Power Consumption 800mW
Supply Voltage 7 to 28V
Reverse Polarity Protection Yes
Inrush Current Limiting Yes
Surge Protection on Com Lines Yes

Electromechanical

Name Value
Power & Signal Connector M8, 4-pin, Male Connector
Dust and Water Protection IP54
Operating Temperature Range -20 oC to 65 oC
Certification Compliant EN IEC 60947-5-2-2020
Dimensions 165mm x 35mm x25mm
Housing Material SLA Resin or ABS
Weight 80g
